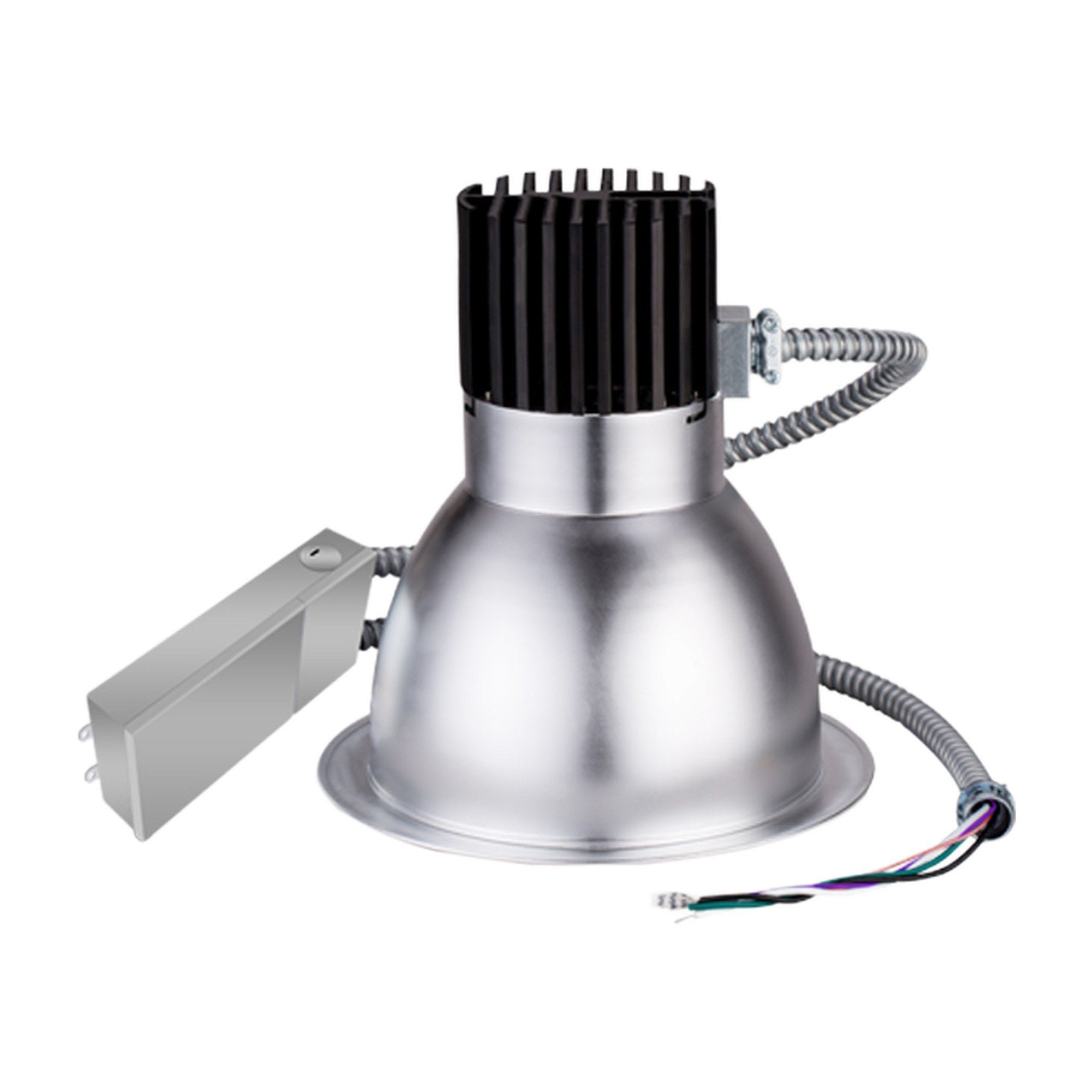

A recessed LED downlight engine for retrofit or new construction ceilings, with 6, 8 and 10 inch trims sold separately.
Key Features
- Three wattage steps per model. Each model lists three wattage steps, so one engine can cover several lumen targets on a project.
- CCT from 3000K to 4000K. The 14–40 W models tune between 3000K, 3500K and 4000K; the 50–80 W models are fixed.
- Retrofit or new construction. The engines suit retrofit or new construction and take 6, 8 and 10 inch trims ordered separately.
Specifications
- Wattage: 14 / 20 / 27 W · 18 / 27 / 40 W · 50 / 65 / 80 W (by model)
- Lumens: Up to 2,025 lm · 3,500 lm · 6,800 lm (by model)
- CCT: 3000K / 3500K / 4000K tunable on the 14–40 W models; 3500K or 4000K on the 50–80 W models
- Voltage: 100–277 VAC on the 14–27 W model; 110–277 VAC on the others
- Dimming: 1–10 V on the 14–27 W and 50–80 W models
- Certifications: UL and Energy Star on the 18–80 W models; IC-rated on the 18–40 W model
- Size: 4 in aperture on the 14–27 W model
- Mounting: Recessed, for retrofit or new construction
- Trims: 6 in, 8 in and 10 in trims, sold separately
In stock in a US warehouse and shipped direct to your site.
